How memory catches a bit that has gone wrong

A computer treats a bit as a firm choice: zero or one. Physical memory has to represent that choice using electrical states in real components. Components can fail, and a stored state can sometimes change between writing and reading. If the computer has kept no other clue about the original value, a changed bit looks just as legitimate as an unchanged one.

Error-correcting memory adds clues. It stores a small number of check bits alongside a block of data. When the block is read, the controller uses the checks to ask whether the pattern still makes sense. With a suitable code, it can go further: it can identify which single bit is wrong and reconstruct the intended value. This family of techniques reaches back to Richard Hamming’s work on error-detecting and error-correcting codes.¹

A check that notices trouble

The simplest illustration is parity. Suppose four data bits are 1011. There are three ones, so we can add a check bit of 1 to make the total number of ones even. If a single bit changes, the total becomes odd. The check tells us that something went wrong.

But parity alone cannot tell us which bit changed. It also misses a pair of changes, because two flips restore an even count. Detecting a fault and repairing it are different problems. A computer that knows only “one of these bits might be wrong” cannot safely guess which one.

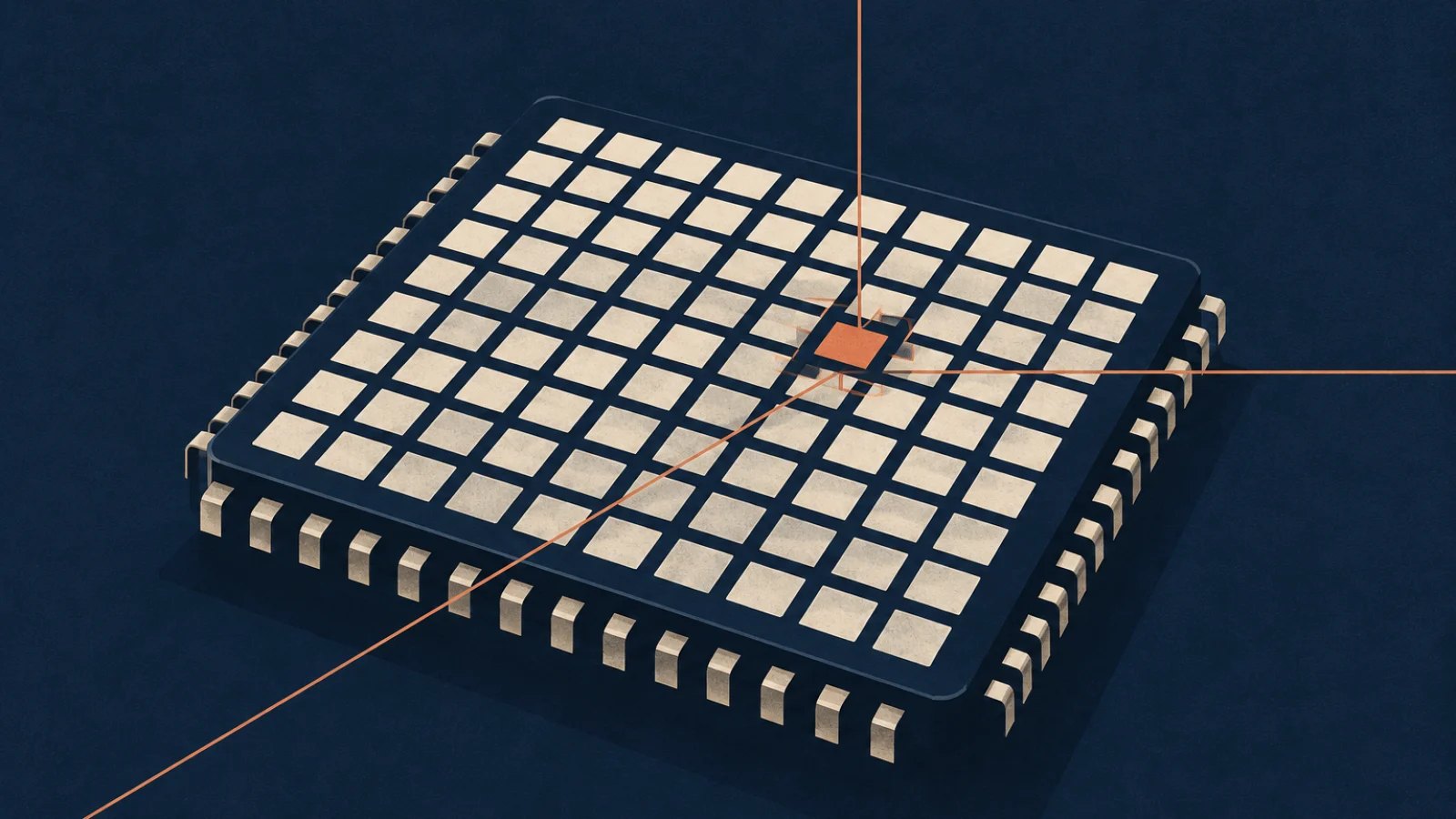

An error-correcting code uses several overlapping checks. Each check covers a different selection of bit positions. Imagine dividing a group of people into three different overlapping roll calls. If one person is absent, the particular combination of failed roll calls can reveal who it is. Likewise, each possible single-bit error produces a characteristic pattern of failed parity checks, often called a syndrome.

The check bits are calculated when data is written. On reading, the controller calculates again and compares. If the pattern indicates one incorrect bit, it flips that bit in the recovered value. The result can be returned as the data originally written, even though one physical memory bit no longer matches. AMD’s documentation describes implementations using single-error correction and double-error detection, commonly abbreviated SECDED.²,³

Why an extra check changes the answer

A basic Hamming-style code can locate a single-bit error. Adding an overall parity check makes an important distinction possible. One wrong bit produces a particular syndrome and changes overall parity. Two wrong bits may produce a syndrome too, but the overall parity remains even. The controller can then avoid “correcting” the wrong position and report an uncorrectable error instead. This is the logic behind SECDED: correct one erroneous bit, detect two.²

That phrase has a precise scope. It refers to errors within the protected unit of data under the assumptions of the code. It does not promise that every possible pattern of three or more flipped bits will be recognised, nor that every kind of hardware failure can be repaired. A faulty chip, a bad connection or a cluster of errors can affect multiple bits in ways that exceed the code’s capacity. More elaborate memory systems may use stronger codes or other protective techniques.

Error correction also requires overhead. The system must store extra bits and perform calculations on reads and writes. Designers accept that cost when the risk of undetected corruption matters enough, especially in servers and other systems where a mistake might affect many users or a long-running computation.

Where the wrong bits come from

It is easy to picture every memory error as a dramatic particle from space striking a chip. Radiation can cause temporary changes, but field data show a broader picture. A large Google study of production machines found that DRAM errors were a practical reliability issue and that patterns varied across devices; many errors were not neatly explained as isolated random events.⁴ Microsoft researchers likewise analysed hard and soft errors across a large population of machines.⁵

A “soft” error changes stored information without necessarily leaving the hardware permanently broken. A “hard” error points to a persistent fault that may cause repeated failures at the same place. ECC can recover from an individual correctable read in either case, but a stream of corrections is a warning sign. It does not magically repair the defective component.

There is another subtlety: an error-correcting scheme protects the data it covers, not everything a computer does. Corruption elsewhere in a processing chain may need other checks. Filesystems, networks and software use their own integrity measures because the route from one stored bit to a reliable result is longer than a single memory read.

The most useful way to think about ECC is as carefully planned redundancy. The spare bits do not duplicate the entire message. Instead, they constrain what a valid message can look like. If the received pattern is only one bit away from a valid one, the controller can choose that intended pattern. If it lies in a more ambiguous position, the safer response is to flag the damage.

Ordinary memory has to trust the bits it reads. Error-correcting memory asks them to account for themselves. A few extra checks turn a silent change into an identifiable fault, and often into one the machine can repair before the rest of the system sees it.
