A drill is a poor way to investigate a planet. Even the deepest boreholes have reached only a tiny fraction of the distance to Earth's centre. Yet the familiar picture of crust, mantle and core is not a guess. It is a model tested against several independent kinds of evidence.¹

An earthquake turns the planet into an experiment

An earthquake releases energy that travels through Earth as waves. Seismometers at different distances record when each kind arrives. If the planet had the same properties all the way through, arrival times would change in a relatively simple way with distance. Instead, waves speed up, slow down, bend and sometimes vanish from expected locations.²

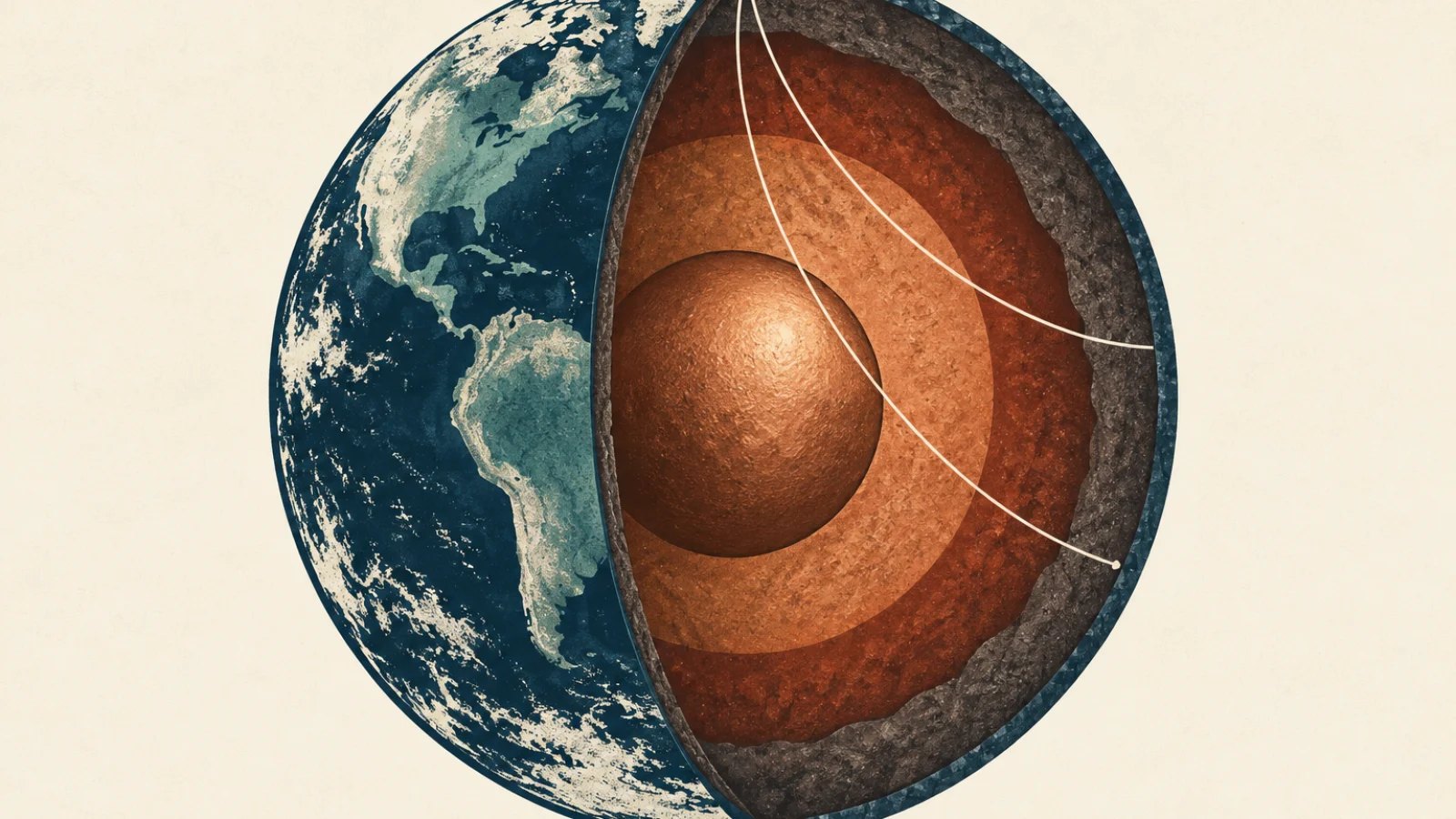

The two most useful wave families behave differently. Compressional, or P, waves squeeze and release material in their direction of travel. Shear, or S, waves shake it sideways. Liquids can transmit P waves but cannot sustain the sideways restoring force needed to transmit S waves. The absence of direct S waves through the deep core is therefore powerful evidence for a liquid outer core. P waves do cross it, but their paths bend sharply at the core–mantle boundary, leaving a broad region where direct arrivals are missing.¹

This is closer to medical imaging than to taking a single photograph. Scientists know where an earthquake began, record its waves at many stations and work backwards to find the structures that could produce the observed travel times. A sudden change in speed can reveal a boundary. Reflected and converted waves add detail. Repeated earthquakes illuminate the same region from different directions, allowing seismic tomography to map relatively fast and slow patches within the mantle.²

The map is not a colour photograph of molten rivers. Wave speed also responds to mineral type, temperature, pressure and small amounts of melt. Interpreting a slow patch requires physics and geological context. That distinction matters: the mantle is overwhelmingly solid rock, although it can flow over geological time.¹

Why the core needs more than one clue

Seismic observations establish that the outer core behaves as a liquid and that an inner region behaves differently. The picture of a solid inner core is supported by the way waves travel through and reflect from the central region, combined with models of iron under enormous pressure. The centre can be hotter than the outer core yet solid because pressure also raises the conditions required for melting.¹

Seismic waves say a great deal about physical behaviour, but speed alone does not print a chemical recipe. Gravity supplies a second constraint. Earth's mass and size give an average density much greater than that of common surface rocks. The planet's rotation and gravitational behaviour constrain how that mass is distributed. A dense interior is required; the seismic boundary tells us where a large part of it lies.¹,³

Why propose iron rather than any heavy substance? Iron is abundant in the material from which rocky planets formed. Some meteorites are metal rich, preserving evidence of separation inside early planetary bodies. Comparison with meteorites and the chemistry of accessible rocks helps set the available ingredients, while Earth's magnetic field is consistent with moving, electrically conducting liquid metal in the outer core. None of these observations by itself proves the exact mixture. Together they make an iron-rich core a compelling explanation.³

A tiny sample under impossible conditions

A rock brought up by a volcano can reveal something about the upper mantle, but it has changed during its journey and tells us little directly about the core. Laboratories address the deeper problem by squeezing and heating minerals or metals, then measuring their properties. Diamond-anvil cells can press a minute sample to pressures relevant to planetary interiors; lasers supply heat and instruments measure how it behaves.⁴

The experiment is a useful check on the seismic interpretation. If a proposed mineral changes structure at a given pressure, its predicted density and wave speed can be compared with the jump observed inside Earth. Iron experiments constrain melting, conductivity and other properties relevant to core models. But a laboratory sample is tiny and short lived, and reproducing pressure, temperature and chemical composition simultaneously is difficult. One study of iron's electrical resistivity reached temperatures up to 4,500 kelvin, illustrating both the sophistication of the method and its specialised scope.⁴

Think of the problem as solving for an unseen object from several shadows. Earthquakes provide one shadow, gravity another, chemistry and laboratory physics others. Many possible interiors might fit a single measurement. Far fewer fit all of them at once.

There is another useful cross-check in the way the whole planet moves. Earth's response to rotation depends on how much mass lies near the centre rather than near the surface. A model made only of familiar crustal rock would not match both that behaviour and the observed gravitational mass. The constraint does not specify every element in the core; it narrows the possible density distribution that a seismic model must satisfy.³

Likewise, meteorites are comparison samples, not pieces of Earth's own core. Some preserve metal-rich material from other early bodies, showing that separation of metal and rock can happen during planetary formation. Their value is to test plausible ingredients and processes, while Earth's seismic and gravitational measurements remain the direct constraints on our planet.³

What the picture still cannot tell us

The broad layered structure is firmly established. Fine detail remains under investigation: exactly which lighter elements accompany iron in the core, how much material is exchanged at deep boundaries, and how mantle temperature and composition contribute to local seismic anomalies.¹,³

That is how a barely penetrated planet can be mapped with confidence without pretending it has been opened. The strongest claims are the ones where different measurements agree; the most interesting open questions sit where those measurements are still too coarse to separate competing explanations.
