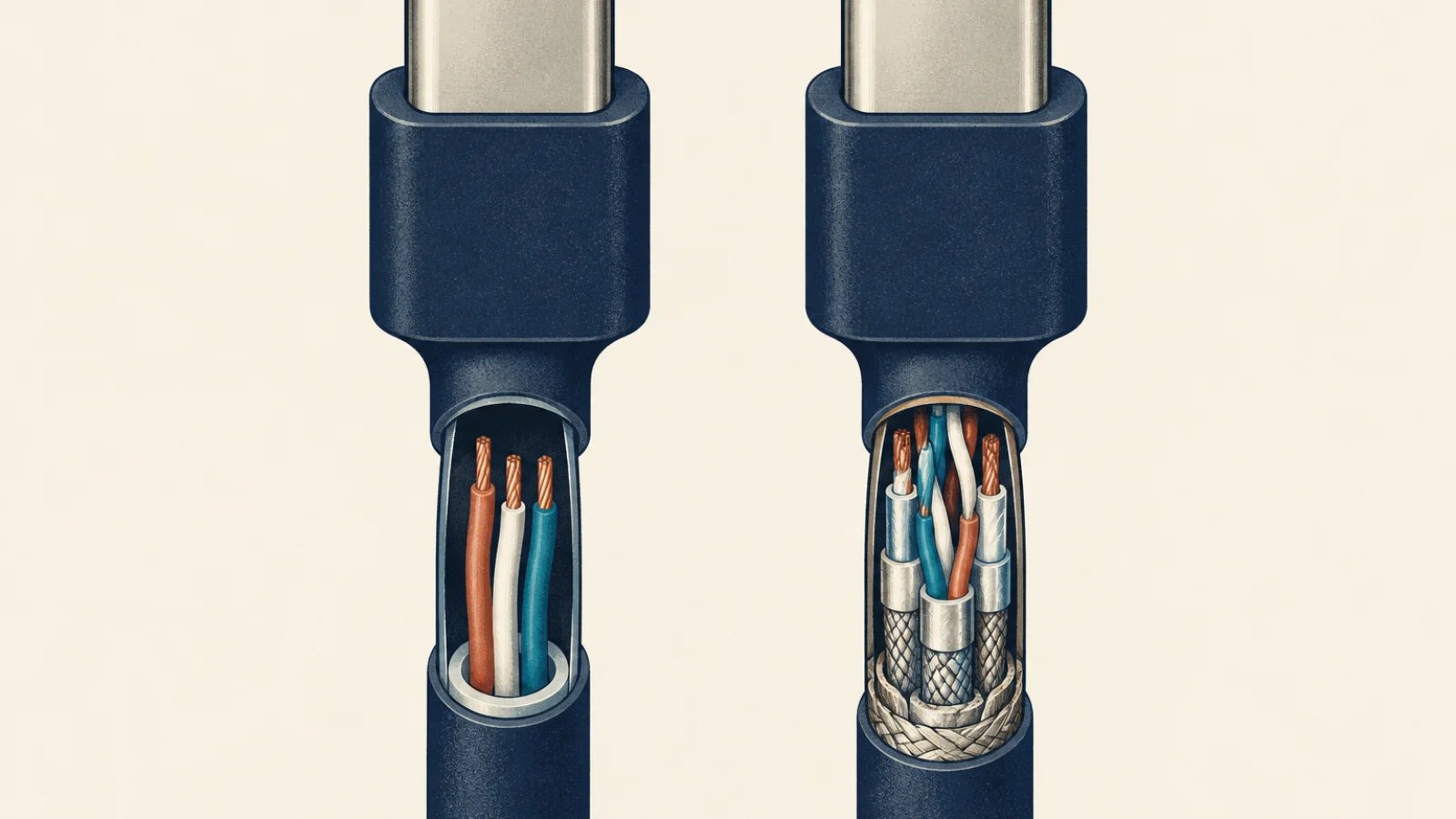

Two USB-C cables can fit the same socket and look identical on a desk. One may charge a laptop and move files quickly; the other may charge it slowly and make an external display stay dark. The oval plug is a common shape, not a promise that every cable has the same wiring or electronics inside. The devices at both ends also have a say in what the connection can do.¹
The plug is only the doorway
USB-C specifies a compact, reversible connector and a family of cable requirements. It can carry power, ordinary USB data, higher-speed data and, with the right equipment, video. A manufacturer does not have to include every capability merely because it uses the connector. A USB 2.0 Type-C cable, for instance, is designed for USB 2.0 operation and physically lacks the conductors needed for USB 3.2 or USB4 signals. USB-IF says such a cable supports data operation up to 480 megabits per second; plug it between faster devices and that cable keeps the connection at the slower level.²
That explains a common puzzle. A cable supplied with a small charger may be entirely suitable for charging and basic data, yet disappoint when used with an external solid-state drive. The plugs fit because their mechanical interface matches. The rapid data link needs a different internal signal path. Calling both products “USB-C cables” tells you how they connect, but not how much information they can carry.
Faster data also places greater demands on the quality of those paths. Signals must remain intelligible after travelling through conductors, insulation and connectors. Shielding, controlled electrical characteristics, cable length and testing all matter. A cable may contain electronic components to condition its data signals; another may be passive. The USB Type-C specification explicitly distinguishes passive cables from active ones and allows electronic marking to describe cable capabilities.³
Power has its own limit
Charging is a separate question from data speed. USB Power Delivery lets a power source and the device being charged agree on an appropriate supply. The newer Extended Power Range defines operation up to 240 watts, using voltage levels as high as 48 volts. A cable must be suitable for the power it carries; simply putting a 240-watt charger on one end cannot make every cable a 240-watt cable.⁴
Think of the connection as a three-part agreement between charger, cable and device. The charger can offer only the power levels it supports. The device can request only those it understands and needs. The cable must be rated for the resulting current and voltage. The usable charging level is constrained by the whole combination, not advertised power on one box. This is why replacing only the charger may fail to speed up charging.
Some cables carry an e-marker, a tiny component in a plug that reports information about the cable when the connection asks for it. It helps the attached equipment identify supported characteristics rather than guessing from the plug's appearance. The marker does not create higher bandwidth or power capacity by itself: it describes a cable built to meet particular requirements.³
The familiar figures on packaging can help, provided they are read as separate specifications. A label such as “20Gbps/60W” makes two claims: a data rate and a power rating. USB-IF's certified-cable programme requires USB-C to USB-C cables submitted for compliance testing to display an appropriate 60W or 240W power marking. Apart from USB 2.0 cables, those certified cables also need the relevant data-rate marking. A bare “USB-C” label communicates far less.⁵
Why a monitor may be different again
A USB-C socket can also carry a display signal, but only if the source device, the route through any dock or adaptor, the cable and the display support a compatible method. One such method is DisplayPort Alternate Mode, which uses the USB-C connection to transport DisplayPort video. VESA describes how that mode can share the connection with USB data and power.⁶
A charging cable built only for USB 2.0 does not provide the high-speed signal contacts needed for that route. Conversely, a fully featured cable cannot add display support to a computer port that never offered it. This is why a cable that charges a laptop perfectly may do nothing for a monitor, and why swapping cables is only one part of diagnosing a blank screen.²,⁶
Thunderbolt adds another layer. Thunderbolt 4 uses the USB-C connector but imposes a defined set of minimum capabilities, including 40Gbps bandwidth and display support. Intel notes that when a Thunderbolt port connects through a lower-capability USB cable, the link works at the compatible lower level. The same-looking socket may therefore be part of several different systems.⁷
How to choose without memorising the standards
Start with the job. For a basic charger, look for the power rating required by the device; a costly high-speed data cable may bring no charging benefit. For an external drive, check the advertised data rate as well as power. For a display or dock, check the computer's port capabilities and the display method the accessory expects. A single number such as “100W” cannot answer a video or data-speed question.
Then look for precise, credible markings on the cable or packaging. USB-IF's certification marks identify tested power and, where applicable, data capabilities. A Thunderbolt certification mark identifies that ecosystem's requirements. A cable can work without being certified, but vague descriptions such as “fast USB-C” offer little basis for predicting which combination will work.⁵,⁷
It also helps to keep the entire route in mind. Imagine a computer capable of 40Gbps data, a drive capable of 20Gbps and a cable rated for only USB 2.0. The common connection cannot run at 40Gbps just because the computer can, or at 20Gbps just because the drive can. The cable is the limiting piece in this example. Replace it with a suitable cable, and the drive's own 20Gbps limit becomes relevant. This is a statement about advertised signalling capability, not a promise that a particular file copy will achieve that number: real transfers incur overhead and depend on the drive and computer too.²,⁷
USB-C's reversible shape made plugging things in easier. It did not make every cable interchangeable. The useful question is no longer “Does it fit?” but “What data rate, power rating and display method does this whole connection support?”
